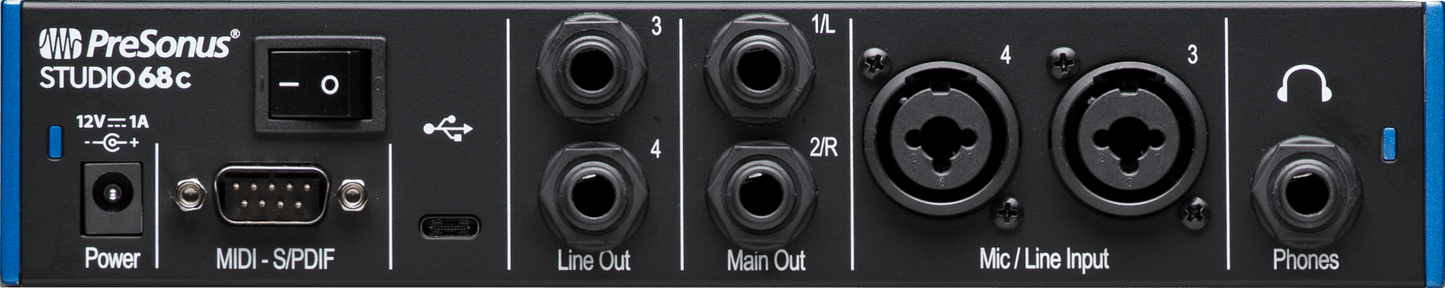

Studio 68c
Studio 68c
SKU: 2777700405
Regular price
$229.99
Regular price
$229.99
Sale price
$229.99
Unit price
per
Couldn't load pickup availability
Studio 68c
Regular price
$229.99
Regular price
$229.99
Sale price
$229.99
Unit price
per
Overview
Ideal for small productions and electronic artists, the Studio 68c provides stunning sound quality with four of PreSonus®' famed XMAX analog mic preamps, plus professional metering and monitoring features. Two stereo outputs provide flexible output options. A powerful headphone amp with A/B switching lets you listen in to either mix, ideal for live-performance applications. The Studio 68c is an audio production powerhouse right out of the box.
When you have the right tools, any job is easier and faster to finish. High-quality converters and PreSonus' professional-grade XMAX mic preamps enable you to capture complex musical harmonics smoothly and naturally, with no audible distortion. XMAX mic preamps deliver incredibly high headroom, deep lows, smooth highs, and a rich overall sound, so you'll hear every breath, transient, and detail in your recordings. Professional input and output metering let you keep an eye on your levels when you're recording by yourself. An easy-to-use direct monitor control blends the analog input signals with playback from your computer, simplifying monitoring. Route two different stereo mixes to dedicated DC coupled outputs. Listen in to either mix on your headphones with a quick Cue A / B button toggle.
When you're upgrading your performance rig or building a custom production studio, the Studio 68c will give you clear, clean, ultra-high-def sound, with the professional tools you need to achieve world-class results.
Overview
Features
- Simultaneous I/O up to 6 inputs/6 outputs (4x4 at 192 kHz)
- 2 mic/instrument/line inputs, 2 mic/line inputs with XMAX-L mic preamps
- 2 balanced ¼-inch TRS main outputs and 2 balanced ¼-inch TRS line outputs for monitor mixing all DC coupled for sending control voltages
- High-power headphone output
- Stereo S/PDIF digital I/O and MIDI In/Out
- Direct monitoring with Cue mix A/B (for headphone output)
- Front-panel level controls for main outputs
- 6 ladder-style LED level meters (4 input, 2 main output)
- 24-bit resolution, 44.1, 48, 88.2, 96, 176.4 and 192 kHz sampling rates
- USB-C to USB-C and USB-C to USB-A cables included for compatibility with most computers
- Includes 6-months of Studio One Pro+ and Studio Magic Software Suite
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.
Specs
Electronics
Connectivity
USB-C®
Headphone Jack
1/4" TRS Active Stereo
Inputs
Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line)); Two - Combo Mic/Line Inputs (XLR Female Balanced or TRS Female Balance (Line))
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC, 10 mA
Voltage
120V
General
Color
Black and Blue
Product Name
Studio 68c, Black and Blue, 120V
Series
Studio
Inputs
Instrument Inputs Dynamic Range
114.7 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz - 20 kHz (± 0.1 dB, Minimum Gain, 48 kHz)
Instrument Inputs Gain Range
80 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
113.9 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz - 20 kHz (± 0.15 dB, Minimum Gain, 48 kHz)
Line Inputs Gain Range
40 dB
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+22 dBu (balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
0.007% (1 kHz, -1 dBFS, Minimum Gain)
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Dynamic Range
114 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
-130 dBu (Maximum Gain, 150Ω, A-Weighted)
Microphone Preamp Frequency Response
20 Hz - 20 kHz (± 0.15 dB, Minimum Gain, 48 kHz)
Microphone Preamp Gain Control Range
80 dB
Microphone Preamp Input Impedance
1.6 kΩ
Microphone Preamp Maximum Input Level
+16 dBu (balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
0.007% (1 kHz, -1 dBFS, Minimum Gain)
Measurements
Product Depth
5.5" (139.7 mm)
Product Height
1.75" (44.45 mm)
Product Width
9" (22.9 cm)
Miscellaneous
Power Cable
12 VDC, 1A, External Power Supply
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, or 192 (kHz)
Output
Headphone Outputs Dynamic Range
107 dB (A-Weighted, 56Ω Load)
Headphone Outputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, 56Ω Load, 48 kHz)
Headphone Outputs Impedance Working Range
32Ω to 300Ω
Headphone Outputs Maximum Output
150 mW/Channel (56Ω load)
Headphone Outputs Total Harmonic Distortion
0.002% (1 kHz, -1 dBFS, no Load)
Main And Line Outputs Dynamic Range
109 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
Main And Line Outputs Maximum Level
+18 dBu (Balanced)
Main And Line Outputs Total Harmonic Distortion
Main: 0.001% (1 kHz, -1 dBFS), Line: 0.0015% (1 kHz, -1 dBFS)
Main Outputs Connection Type
1/4" TRS, Balanced
Performance
Digital Audio Bit Depth
24 Bit
Digital Audio Dynamic Range
114 dB
